Makefile

What is a Makefile?

A Makefile is a file that contains a set of rules used to build and manage a project. It is used to automate the process of compiling and linking source code files into an executable program.

Why use a Makefile?

Let’s say we have to compile a libft library that consists of multiple source files. Instead of manually compiling each source file and linking them together, we can use a Makefile to automate the process.

Practical Example (executable)

Let’s say we have a project with the following files:

• main.c
• utils.c
• utils.h

Main file (main.c) contains the main function which calls a function from utils.c using a function prototype from utils.h (header file).

Let’s create a Makefile to compile these files into an executable program:

CC = gcc
CFLAGS = -Wall -Wextra -Werror
OUT = program

SRC = main.c \
	  utils.c \
OBJ = $(SRC:.c=.o)

all: $(OUT)

$(OUT): $(OBJ)
	$(CC) $(CFLAGS) -o $@ $^

%.o: %.c
	$(CC) $(CFLAGS) -c $< -o $@

clean:
    rm -f $(OBJ)

fclean: clean
	rm -f $(NAME)

re: fclean all

.PHONY: all clean fclean re

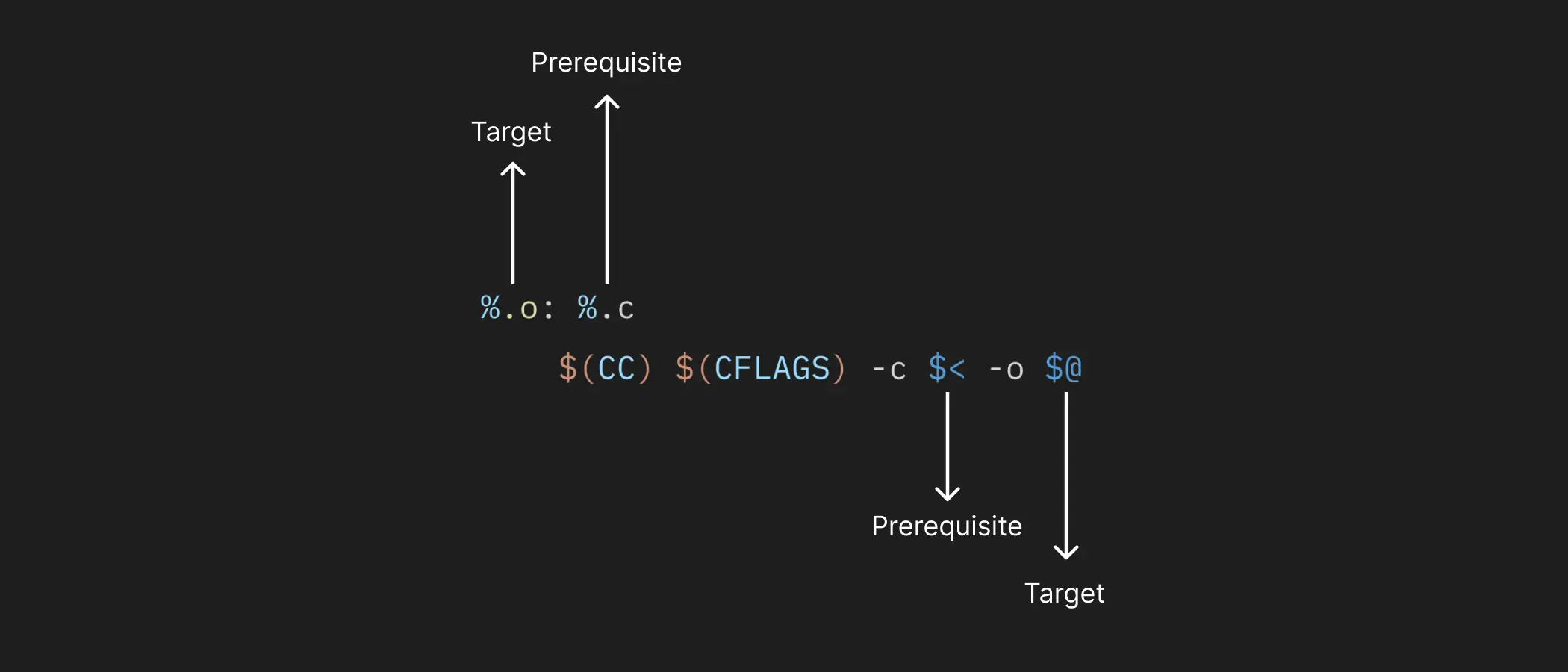

Automatic Variables

• $@ represents the target of the rule.
• $^ represents all the prerequisites of the rule.
• $< represents the first prerequisite of the rule.

Running make will:

• Compile main.c into main.o and utils.c into utils.o using the rule for .o files.
• Link main.o and utils.o into the program executable (program).

The flow in detail:

1. The all target depends on $(OUT) (which is program), so Make looks for the rule to build $(OUT). The rule for $(OUT) is:

   $(OUT): $(OBJ)
       $(CC) $(CFLAGS) -o $@ $^

2. The rule for $(OUT) depends on $(OBJ) (which is main.o and utils.o), so Make looks for the rules to build $(OBJ).
3. The rule to build .c files into .o files is:

   %.o: %.c
       $(CC) $(CFLAGS) -c $< -o $@
   # gcc -Wall -Wextra -Werror -c main.c -o main.o
   # gcc -Wall -Wextra -Werror -c utils.c -o utils.o

   Make uses this rule to build main.o and utils.o.
4. Now that main.o and utils.o are built, Make can continue building $(OUT) (program) by linking main.o and utils.o to create the executable program:

   $(OUT): $(OBJ)
       $(CC) $(CFLAGS) -o $@ $^
   # Translates to: gcc -Wall -Wextra -Werror -o program main.o utils.o

5. The program is built successfully.

Makefile Syntax (library)

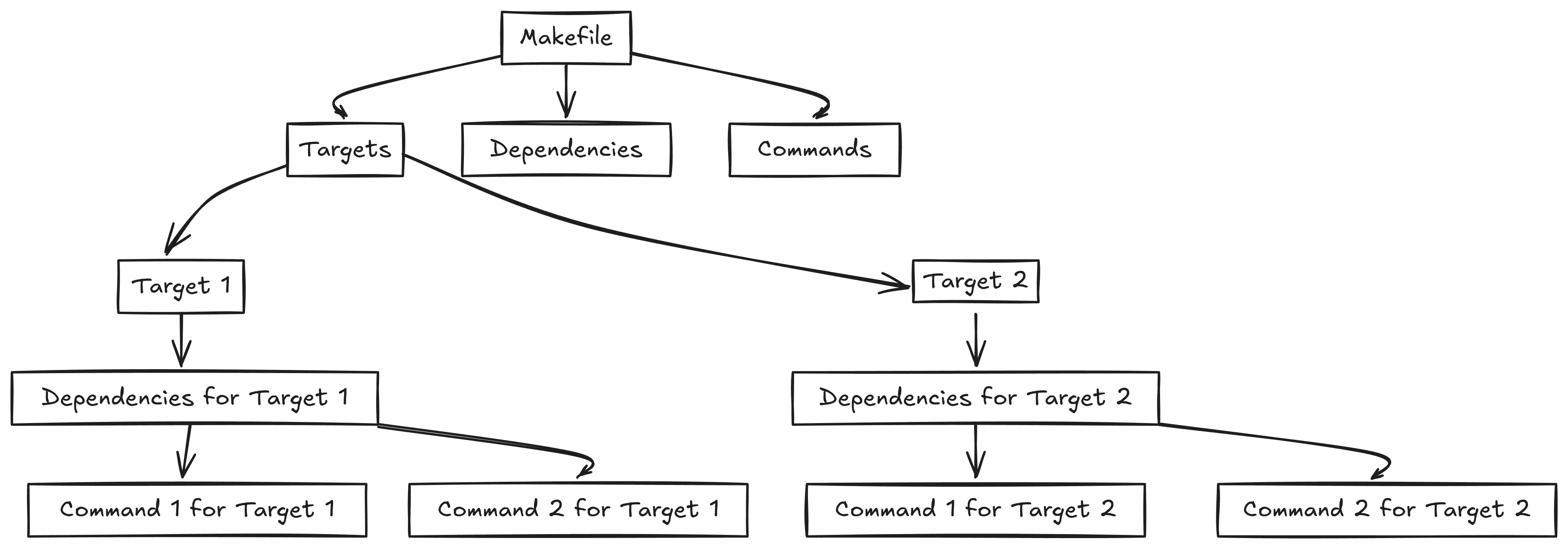

A Makefile consists of rules that define how to build the project. A common example of a Makefile is:

CC = gcc
CFLAGS = -Wall -Wextra -Werror
OUT = libft.a

SRC = $(wildcard *.c)
OBJ = $(SRC:.c=.o)

all: $(OUT)

$(OUT): $(OBJ)
	ar rcs $@ $^
# "ar rcs $@ $^" is equivalent to "ar rcs libft.a *.o" in this case

clean:
	rm -f $(OBJ)

fclean: clean
	rm -f $(OUT)

re: fclean all

.PHONY: all clean fclean re

In this Makefile:

1. CC is the compiler to use
2. CFLAGS are the compiler flags
3. clean removes object files
4. fclean removes object files and the library (libft.a)
5. re rebuilds everything by cleaning and building the library
6. .PHONY specifies that all, clean, fclean, and re are commands, not files.
