so_long

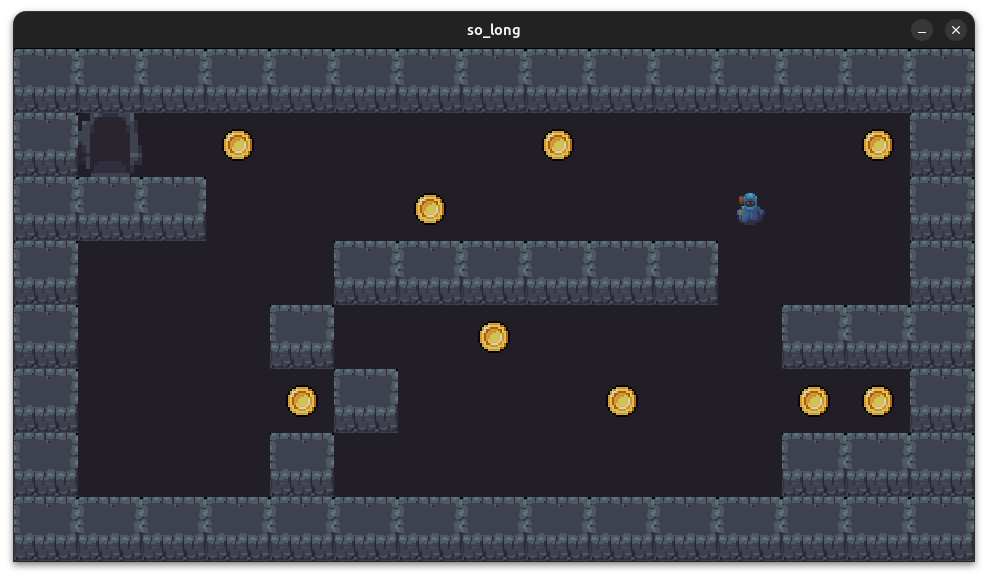

so_long is a basic 2D game written in C using the MinilibX library for rendering and handling input. The goal is to navigate a maze, collect all items, and reach the exit.

This project is part of the 42 curriculum and introduces key concepts like:

graphics rendering with MinilibX
keyboard event handling
as usual, memory&resource management in C

Key Requirements

Libft
ft_printf
get_next_line
MiniLibX basics.
The game should be able to load a map from any .ber file, as long as it follows the required format.

Important Notes

It would be impossible to cover all parts of the project in this document, but here are some key points to consider:

⚠️ Proper parsing and validation of the map file (374 lines)
⚠️ Properly closing the window and freeing resources, including MLX related ones.
⚡️ Efficient handling of keyboard events (only ~60 lines!)

Parsing and Validation

The map is represented as a 2D array of characters, in a .ber format, where each character represents a different type of tile in the game. The following characters are used:

1: Wall
0: Empty space
C: Collectible item
E: Exit
P: Player starting position

Here is an example of a map:

111111111111111
1E0C0000C0000C1
111000C0000P001
100001111110001
1000100C0000111
1000C1000C00CC1
100010000000111
111111111111111

Here is my approach to parsing and validating the map:

// Validate the map file format
void	val_file(char *path)
{
	size_t	len;

	len = ft_strlen(path);
	if (len < 4 || ft_strncmp(path + len - 4, ".ber", 4) != 0)
		handle_error("Invalid map file format. Expected .ber", 1);
}

/*
1. check_counts:
    - Counts all occurrences of each character in the map.
    - Updates the game structure with the count of collectibles (C).
    - Check if the map contains exactly one player (P), one exit (E), and at least one collectible (C).
    - If any of these conditions are not met, return 0.
2. check_reach:
    - Checks if the E and all C's are reachable from the P position.
    - If the exit is reachable, return 1.
    - If not, return 0.
*/
int	val_map(char **map, int height, t_game *game)
{
	int	width;

	width = ft_strlen(map[0]);
	if (!check_counts(map, height, width, game))
		return (0);
	if (!check_reach(map, height, width))
		return (0);
	return (1);
}

// Utilize our get_next_line function to read the map line by line,
// taking care of the newline at the end of last line.
void	parse_map(char ***map, int fd)
{
	int		i;
	char	*line;
	int		len;

	i = 0;
	while (1)
	{
		line = get_next_line(fd);
		if (line == NULL)
			break ;
		len = ft_strlen(line);
		if (len > 0 && line[len - 1] == '\n')
			line[len - 1] = '\0';
		(*map)[i++] = line;
	}
	(*map)[i] = NULL;
	if (i == 0)
	{
		free(*map);
		handle_error("Empty map file", 1);
	}
}

/*
Main function to validate the file format and map contents,
and return the parsed map as a 2D array of strings.
*/
char	**get_map(char *path, t_game *game)
{
	char	**map;
	int		fd;
	int		result;
	int		map_height;

	val_file(path);
	fd = open(path, O_RDONLY);
	if (fd == -1)
		handle_error(strerror(errno), 1);
	map_height = count_lines_fd(path);
	map = malloc((map_height + 1) * sizeof(char *));
	if (!map)
		handle_error("Malloc failed", 1);
	parse_map(&map, fd);
	result = val_map(map, map_height, game);
	if (!result)
	{
		free_2d(map);
		handle_error("Invalid map contents", 1);
	}
	close(fd);
	return (map);
}

Memory Freeing

This is my go-to combo for this project. Let’s have a look at these three functions:

// MLX Exit function
int	handle_exit(void *param)
{
	t_game	*game;

	game = (t_game *)param;
	free_game(game);
	exit(0);
	return (0);
}

// Free the map
void	free_2d(char **arr)
{
	int	i;

	i = 0;
	while (arr[i])
	{
		free(arr[i]);
		i++;
	}
	free(arr);
}

// Free the game structure and all associated resources
void	free_game(t_game *game)
{
	if (game->img_wall)
		mlx_destroy_image(game->mlx, game->img_wall);
	if (game->img_floor)
		mlx_destroy_image(game->mlx, game->img_floor);
	if (game->img_player)
		mlx_destroy_image(game->mlx, game->img_player);
	if (game->img_exit)
		mlx_destroy_image(game->mlx, game->img_exit);
	if (game->img_collect)
		mlx_destroy_image(game->mlx, game->img_collect);
	if (game->win)
		mlx_destroy_window(game->mlx, game->win);
	if (game->map)
		free_2d(game->map);
	if (game->mlx)
	{
		mlx_destroy_display(game->mlx);
		free(game->mlx);
	}
}

`handle_exit`

handle_exit is used to handle the exit event when the user closes the window. It calls free_game to free all resources associated with the game, and the game is passed as a void pointer to the function.

Here is how the handle_exit function is used in the main loop:

mlx_hook(game.win, 17, 0, handle_exit, &game);

`free_2d`

free_2d is a utility function that frees a 2D array of strs. It’s used to free the map and a copy of map in case of any errors before the game starts, and also in the free_game function as you can see above.

`free_game`

Here everything is freed. The order of freeing is important, as some resources depend on others. For example, the window must be destroyed before the display is destroyed.

Keyboard Events

The game uses keyboard events to handle player input. I went with arrow-keys for movement, but you can change it to WASD or any other keys you prefer.

Initially I had a lot of boilerplate code for handling keyboard events, and it was quite hard to come up with an efficient, short, norm-compliant solution. But I managed it. Let’s have a look at the final version:

// Move "P" to +dx +dy position
static void	update_player_position(t_game *game, t_pos p, int dx, int dy)
{
	game->map[p.y][p.x] = '0';
	game->map[p.y + dy][p.x + dx] = 'P';
	game->moves++;
	ft_printf("Movements: %d\n", game->moves);
	draw_map(game, game->height, game->width);
}

// Tile Interaction:
// 1. Don't allow moving into walls (1)
// 2. If the tile is an exit (E), check if all collectibles are collected
// 3. If the tile is a collectible (C), increment the count of collected items
static int	handle_tile_interaction(t_game *game, char tile)
{
	if (tile == '1')
		return (0);
	if (tile == 'E')
	{
		if (game->acquired_collectibles < game->map_counts.collectibles)
		{
			ft_printf("You must collect all collectibles first!\n");
			return (0);
		}
		handle_exit(game);
	}
	if (tile == 'C')
		game->acquired_collectibles++;
	return (1);
}

// Simple movement delta calculation
static int	get_movement_delta(int keycode, int *dx, int *dy)
{
	*dx = 0;
	*dy = 0;
	if (keycode == XK_Left)
		*dx = -1;
	else if (keycode == XK_Right)
		*dx = 1;
	else if (keycode == XK_Up)
		*dy = -1;
	else if (keycode == XK_Down)
		*dy = 1;
	else if (keycode == XK_Escape)
		return (-1);
	return (*dx != 0 || *dy != 0);
}

// Main function to handle keypress events
int	handle_keypress(int keycode, t_game *game)
{
	t_pos	p;
	int		dx;
	int		dy;
	char	tile;

	p = find_pos(game->map, game->height, game->width, 'P');
	if (p.x < 0 || p.y < 0)
		return (0);
	if (get_movement_delta(keycode, &dx, &dy) == -1)
		handle_exit(game);
	if (dx == 0 && dy == 0)
		return (0);
	tile = game->map[p.y + dy][p.x + dx];
	if (!handle_tile_interaction(game, tile))
		return (0);
	update_player_position(game, p, dx, dy);
	return (0);
}

This is how handle_keypress is used in the main loop:

mlx_hook(game.win, 2, 1L << 0, handle_keypress, &game);

Final Thoughts

This project was a great introduction to game development in C, and it helped me understand the basics of graphics rendering and user input handling in C. Good luck with your own projects!
